Dublin Airport Terminal 1 Map (Most Up-To-Date)
Dublin Airport Terminal 1 is a split-level, linear terminal block feeding a central post-security distribution hub, with piers radiating out to gate zones and a southbound link corridor into Terminal 2—all within Ireland’s main Dublin air hub. Landside, Departures runs on Level 2 with security pulled to the far-left side; airside, the forced duty-free exit drops you into the key junction where gate zones diverge and long-walk or bus-gate risk starts.
Map Table
| Zone | Connection | Walk Time |
|---|---|---|
| Departures Level 2 | central doors, check-in Areas 1–4 | — |
| Main Security | far-left end, Departures hall | 2–5 min from doors |
| Airside Distribution Hub | duty-free exit, main lounge | — |
| Gates 100–300 | native T1 piers | 3–15 min from hub |
| Link Corridor to T2 | south of T1 retail, gates 400+ | 3–4 min corridor |
| Bus Gates 332–337 | link corridor, ground-floor gates | extra descent time |
| Gate 335 South Gates | Pier 3 / link-corridor area | bus transfer |
Dublin Airport Terminal 1 Map Strategy
- Treat the duty-free exit as the countdown start: stop at the first airside junction and confirm whether you’re committed to Gates 100–300 or redirected toward Gates 400+ via the south link corridor.
- Budget walking time by gate family, not terminal name: the 100s are the longest trek zone, the 300s are closest to the hub, and the 400s require the inter-terminal corridor plus a vertical shift into Terminal 2.
- Decode “bus-gate risk” early from the gate number: 217–220 and 332–337 mean a down-to-ground transition for bus processing; Gate 335 functions like a shuttle station for remote South Gates.
- Minimize late surprises by scanning for the vertical drop points: if your route involves the link corridor, actively look for the lift/stair core to the 332–337 gates before you over-walk past the descent and have to backtrack.
2026 Dublin Airport Terminal 1 Map + Printable PDF
The 2026 Terminal 1 layout still hinges on one post-security hub: the duty-free exit into the departures lounge where signs split you toward Gates 100–300 (Terminal 1 piers) or Gates 400+ (via the Terminal 1–Terminal 2 link). Fast Track remains anchored by Check-in Area 4, and bus-gate operations still concentrate at Gate 335 and the 332–337 ground-floor cluster.

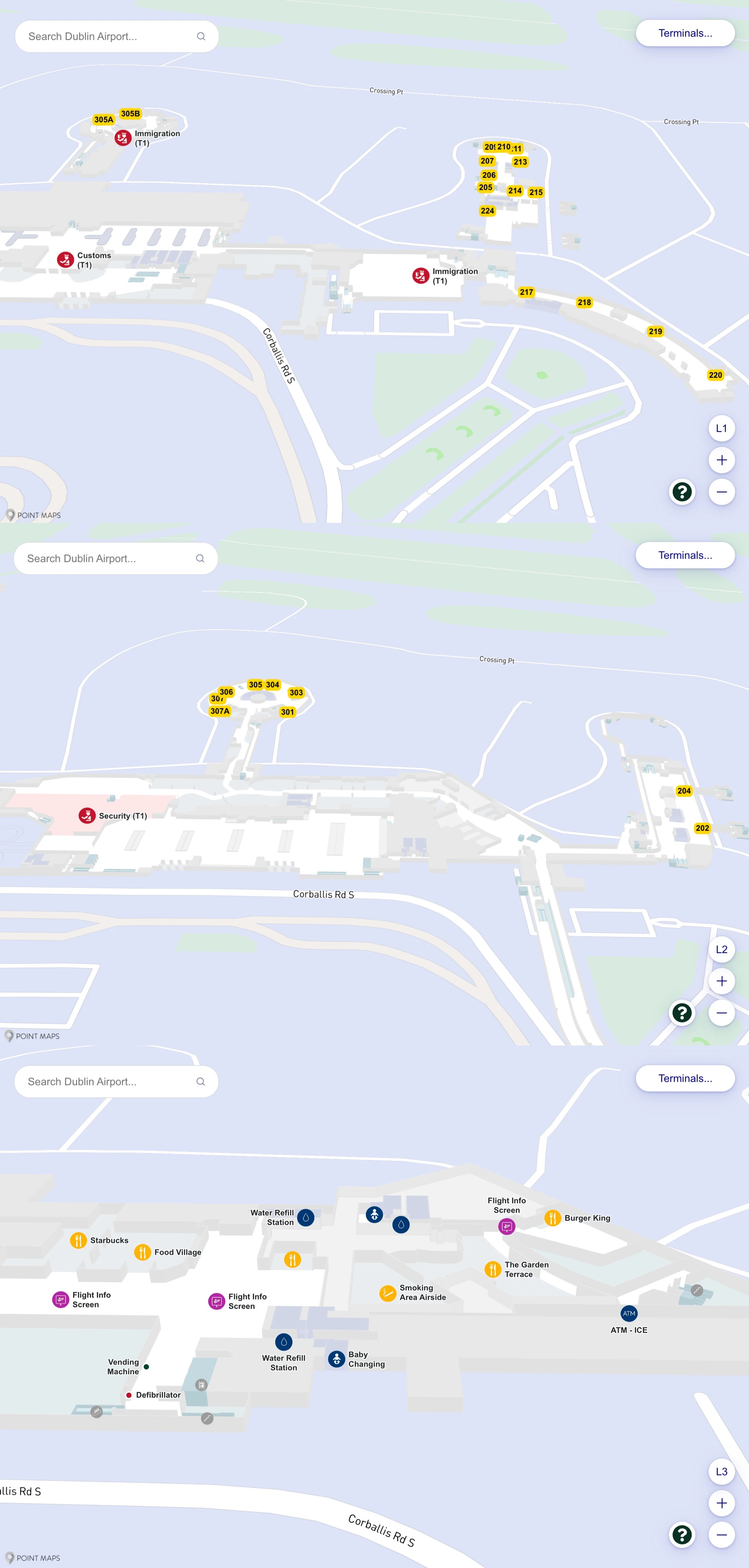

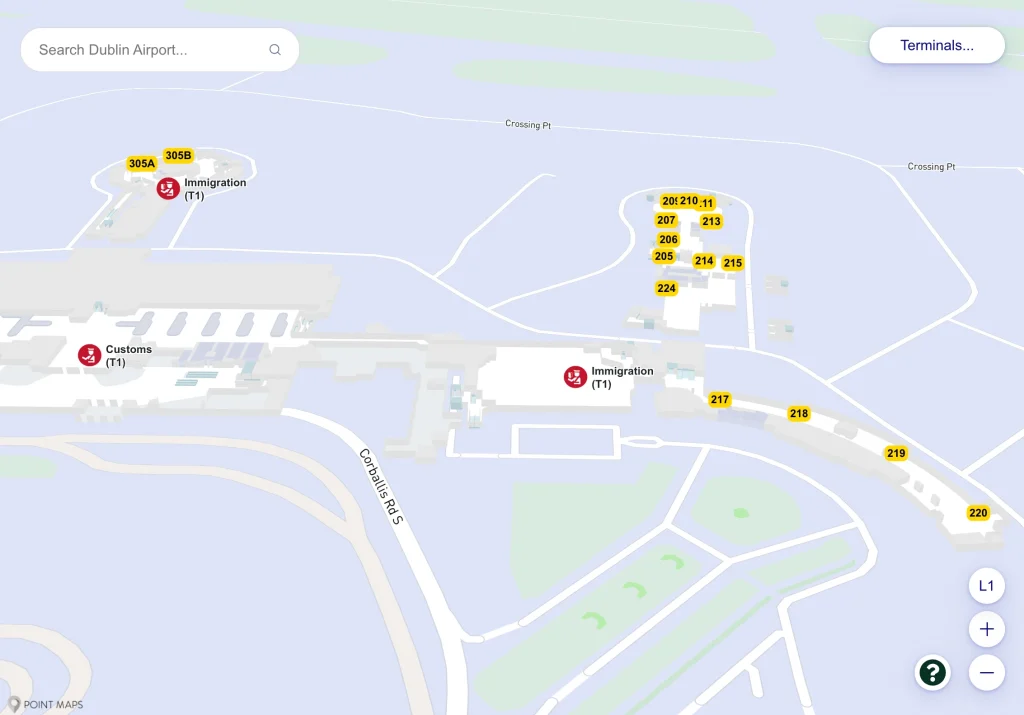

Dublin Airport Terminal 1 Level 1 Map 2025

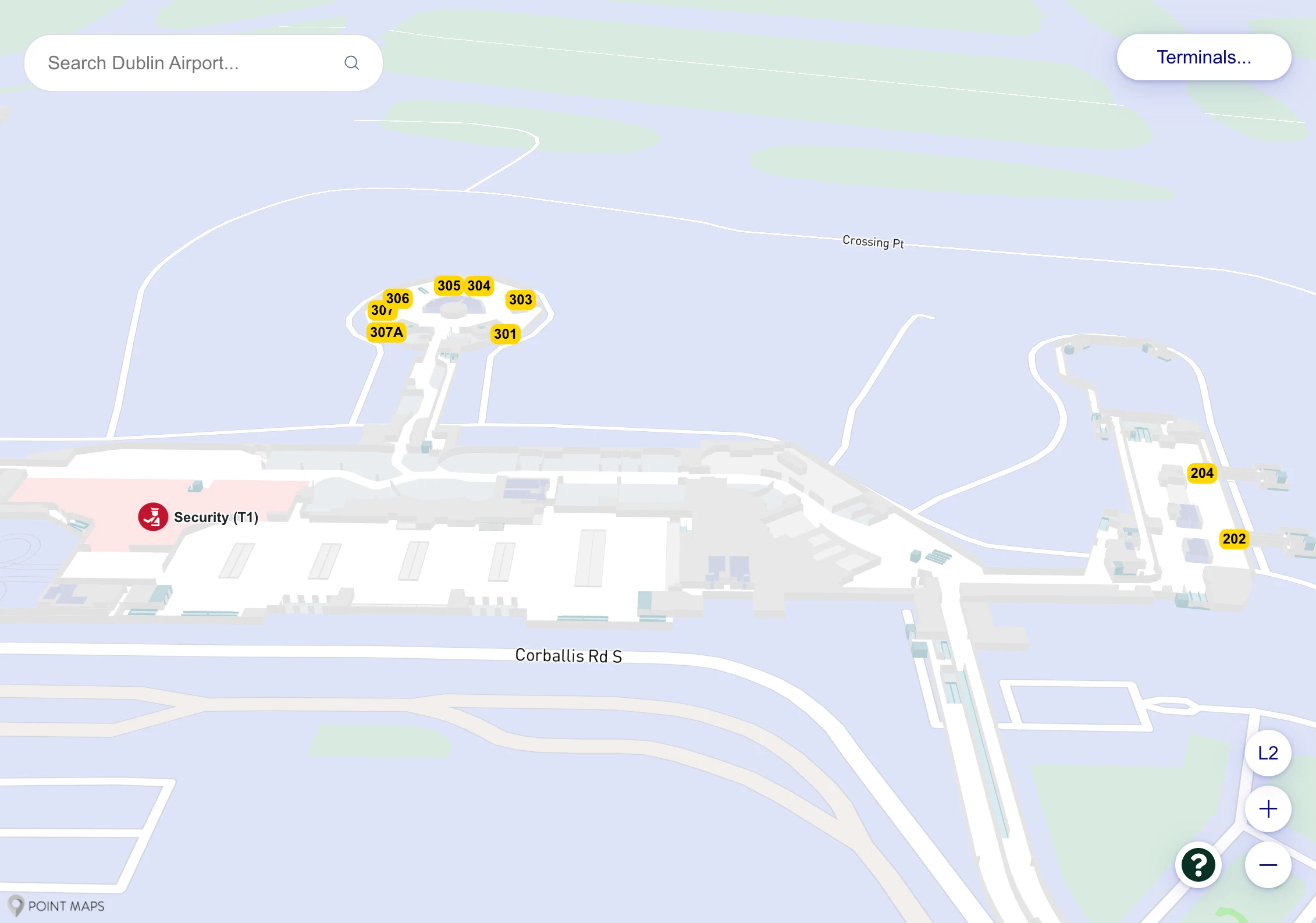

Dublin Airport Terminal 1 Level 2 Map 2025

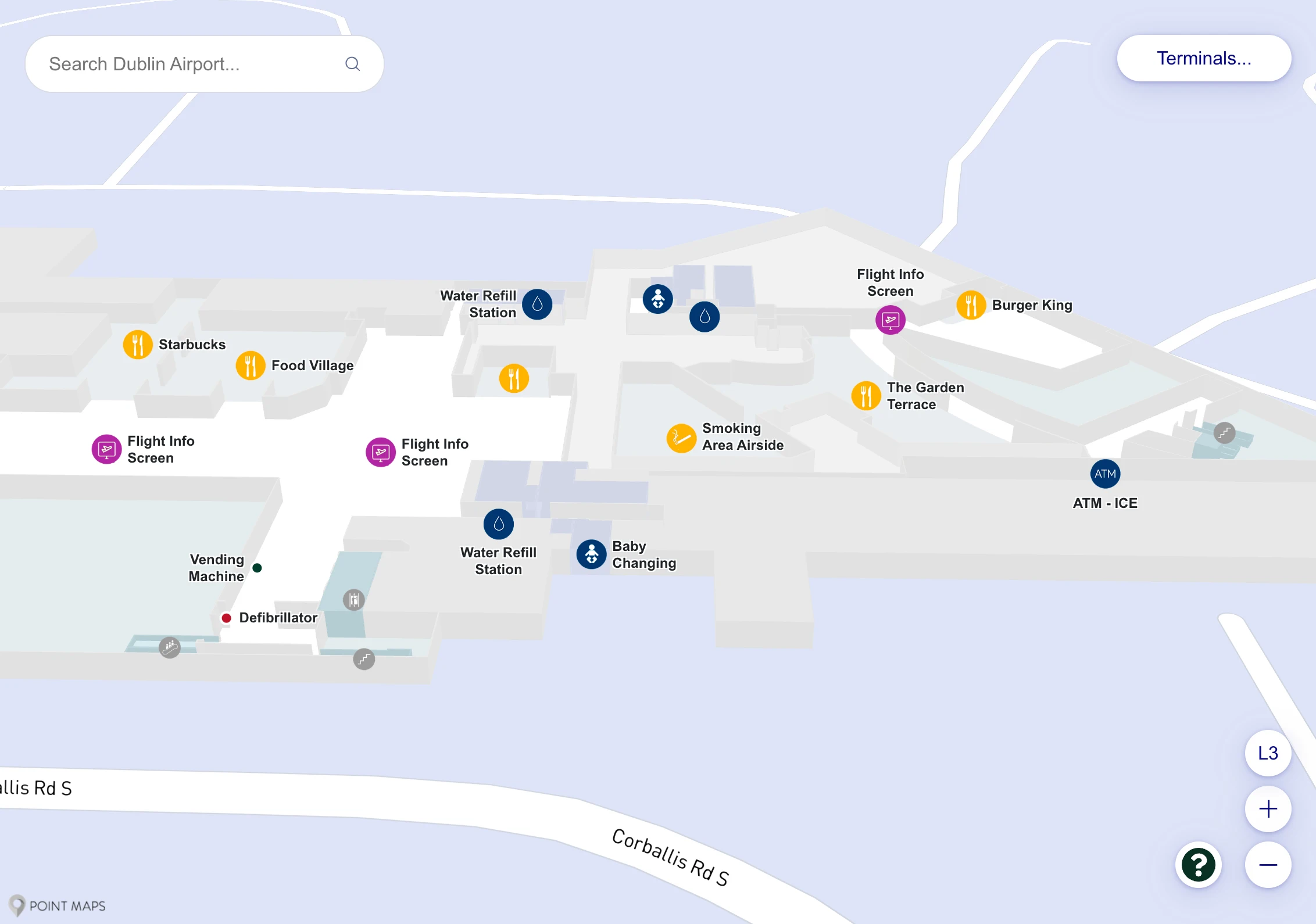

Dublin Airport Terminal 1 Level 3 Map 2025
2026 Dublin Airport Terminal 1 Map Guide
What is the exact airside (post-security) corridor entrance point that connects Terminal 1 ↔ Terminal 2?
The Terminal 1 ↔ Terminal 2 airside connector starts at the south end of the Terminal 1 airside shopping area, immediately after you exit the mandatory duty-free serpentine into the main departures lounge. The entrance presents as a southbound passage that leaves the “native T1” lounge space and becomes the long inter-terminal link corridor.
From the Terminal 1 security exit, follow the forced retail/duty-free route until you re-enter the open departures lounge, then orient toward the “Gates 400–426” direction (south/right from the hub). The corridor is visually confirmed by a long straight walk lined with airline lounges; the Terminal 2 side is marked by a major vertical change, with a high escalator up into the Terminal 2 retail bowl.
Where is the first decision split (exact junction) where signage separates “100–300 gates” from “400 gates” on the airside map?
The first signage split sits at the Terminal 1 airside distribution hub immediately after the duty-free exit, where the retail serpentine opens into the main departures lounge. This junction is the moment you stop being “in duty-free” and start being routed by gate families.
From this hub position, signs for Gates 100–300 keep you straight ahead or left, staying in Terminal 1’s original footprint and northern piers, while signs for Gates 400–426 pull you right/south toward the Terminal 1–Terminal 2 link corridor. Use the duty-free exit as the landmark: if you can see the open lounge with multiple gate-direction boards, you’re at the split.
What is the walking distance from Terminal 1 security exit to the start of the 100-gates corridor?
Walking runs about 250–300 meters from the Terminal 1 security exit to the start of the 100-gates corridor. That distance begins at the security exit into the post-screening retail flow and ends where the dedicated Pier 1 / 100-series access walkway begins.
The practical sequence is security exit → forced duty-free serpentine → re-entry into the open departures lounge (the distribution hub) → continue northbound toward the Pier 1 / Gates 101–121 access. The duty-free exit and the central lounge are your anchors: once you’ve cleared those, you’re still not “in the 100s” until you reach the distinct elevated walkway that curves out toward the far-north extension.
What is the walking distance from Terminal 1 security exit to the 300-gates area (via the mapped route)?
Walking is roughly 100–200 meters from the Terminal 1 security exit to the 300-gates area. This is the shortest airside gate sector because Pier 3 branches directly off the main Terminal 1 lounge immediately beyond the post-security retail zone.
Exit security, follow the forced duty-free path until you emerge into the open departures lounge (the distribution hub), then take the spur signed for the 300-series (Pier 3 / Gates 301–307A). Use the duty-free exit as the anchor: the 300s are the first “close-in” pier off that lounge, typically reached in about 3–5 minutes of normal walking.
On the map, where is the bus-boarding checkpoint/holding area for remote stand / bus gates used by Terminal 1 departures?
The primary bus-boarding checkpoint for Terminal 1 remote stands is Gate 335, which functions as a shuttle-bus station rather than a jet-bridge gate. This is the main transition point where walking ends and bus processing begins for the “South Gates” remote complex.
A second bus-gate holding cluster appears as Gates 332–337 on the ground floor of the link corridor between Terminals 1 and 2. On the airside map, that means the bus-boarding area is not on the main lounge level: it’s tied to a vertical descent point (stairs/lift) off the inter-terminal link, where you drop down to the 332–337 gate level and queue for bus boarding.
What is the exact mapped route from Terminal 1 security exit to the remote-stand bus gates access point (the transition point from walking to bus processing)?
Bus-gate access requires a vertical descent: the transition point is the lift/stair core down to the ground-floor Gates 332–337 in the link corridor, or the scan-and-board portal at Gate 335 for South Gates. That “down to ground” or “Gate 335 scan” moment is where walking stops and bus processing starts.
From Terminal 1 security exit, follow the forced duty-free serpentine to the open departures lounge (the distribution hub), then take the right/south routing signed for the 400s/link corridor. Once inside the inter-terminal link corridor, locate the marked vertical core for Gates 332–337 and descend to the ground-floor gate level for bus boarding. For South Gates, continue toward the Pier 3 / link-corridor area and proceed to Gate 335, where boarding passes are scanned and passengers are marshaled onto buses.
Where is the Terminal 1 Fast Track lane entrance relative to the main Terminal 1 security entrance on the departures map?
The Terminal 1 Fast Track entrance sits in Check-in Area 4 on Departures Level 2, while the main security entrance is positioned at the far left end of the Departures hall. This means Fast Track is centrally anchored in the check-in array, but standard security pulls you left along the length of the hall.
Relative positioning on the departures map uses the check-in “Areas” as the anchor: Area 4 is the landmark for Fast Track entry (with distinct purple signage), and the main security intake is the leftmost security zone when you face the check-in desks from the departures doors. If you walk past Area 4 and keep drifting left, you’re moving toward standard security; if you’re in Area 4, you’re at Fast Track’s fixed entry point.
What is the exact walking distance from the Terminal 1 departures doors to the Terminal 1 security entry barriers (boarding pass check point)?
Walking is approximately 100–150 meters from the central Terminal 1 departures doors to the main Terminal 1 security entry barriers. This measurement assumes you enter on Departures Level 2 and then traverse laterally to the far-left security induction point.
Use the departures hall geometry as your anchor: starting at the central glass-door entry line, you pass the central check-in zone (including the Area 4 region) and continue toward the left end of the hall where the main security queue forms. The route is straightforward but can add minutes in peak periods because you’re moving across the “grain” of check-in queues as the pedestrian flow biases left toward screening.
Where are the one-way gate separators (the “can’t turn back” point) between the 200/300 gate areas shown on the airside map?
No permanent “can’t turn back” one-way separator is shown between the 200 and 300 gate areas in Terminal 1’s departures airside zone. The mapped departure lounge functions as a single, open-access airside space where the 100/200/300 piers are reachable from the same central hub without an irreversible checkpoint.
What looks like separation on the map is primarily a wayfinding split at the post-duty-free distribution hub, not a hard barrier between the 200s and 300s. The true “point of no return” behavior at Dublin is associated with specialized processing zones (notably US Preclearance on the Terminal 2 / 400-gate side), rather than an internal divider between Pier 2 (200s) and Pier 3 (300s) within Terminal 1.
For a Terminal 1 arrival, where is the “Flight Connections” vertical circulation point (escalator/stairs) located relative to baggage reclaim?
The Flight Connections vertical circulation point sits before you fully commit into the public Arrivals/Baggage Reclaim exit flow, near the base of the piers where arrivals are routed by green “Flight Connections” signs. It is positioned to pull connecting passengers up and back toward the departures airside system rather than letting them drift into the landside baggage reclaim hall.
On a Terminal 1 arrivals path, treat baggage reclaim as the “wrong direction” landmark for connections: if you are seeing the baggage reclaim entrance or landside arrivals services, you’ve likely gone past the optimal connection capture point. Instead, follow the green Flight Connections signage to the staffed connections host area and use the nearby escalator/stairs/lift bank that feeds you into the connections route back toward departures processing.
