Zürich Airport Terminal AB Map (Most Up-To-Date)
Zürich Airport “Terminal A/B” is really one connected airside hub: a curved Airside Center (the core) with finger piers branching out. Within Switzerland’s busiest airport complex, Pier A runs as a long Schengen pier, Pier B sits beside it as a mixed-use pier, Pier D hides as bus gates below Pier B, and satellite Pier E sits midfield across a runway with a mandatory Skymetro link. Most navigation stress comes from vertical level changes at the Skymetro–passport-control choke.
Map Table
| Zone | Connection | Walk Time |
|---|---|---|
| Airside Center | Pier A / Pier B roots, duty-free spine, transfer escalators | 0–5 min to A/B roots |
| Pier A (Gates A) | Schengen finger pier, travelators, linear gate numbers | 10–15 min to A86 (worst case) |
| Pier B (Gates B) | mixed Schengen / non-Schengen partitions, shared B/D entrance | 3–10 min from center |
| Pier D (Bus Gates D) | lower level under Pier B, bus holding area | +2–5 min vertical drop from B/D split |
| Pier E (Gates E) | midfield satellite, Skymetro only, non-Schengen arrivals pulse | 15–20 min Skymetro cycle (door-to-door) |
Zürich Airport Terminal A/B Map Strategy
- Treat “Terminal A/B” as a landside label trap; airside success comes from targeting Pier A, Pier B, Pier D (bus), or Pier E (midfield) and tracking your level changes.
- For Pier E arrivals to A/B, pre-commit to the decision chain: down to Skymetro (no walking alternative) → up into the passport-control hall → immediate “Transfer A / Transfer B” escalators after immigration, not baggage-claim flow.
- Don’t follow first-choice “Terminal 1 / Terminal 2” instincts once you’re airside; the reconvergence is the Airside Center spine, and the next true split is “Gates A” vs “Gates B/D,” not terminals.
- Don’t miss Bus Gates D by staying level: the B/D entrance corridor has a deliberate down-escalator/elevator fork for D; if your boarding pass says D, assume “Pier B first, then down.”

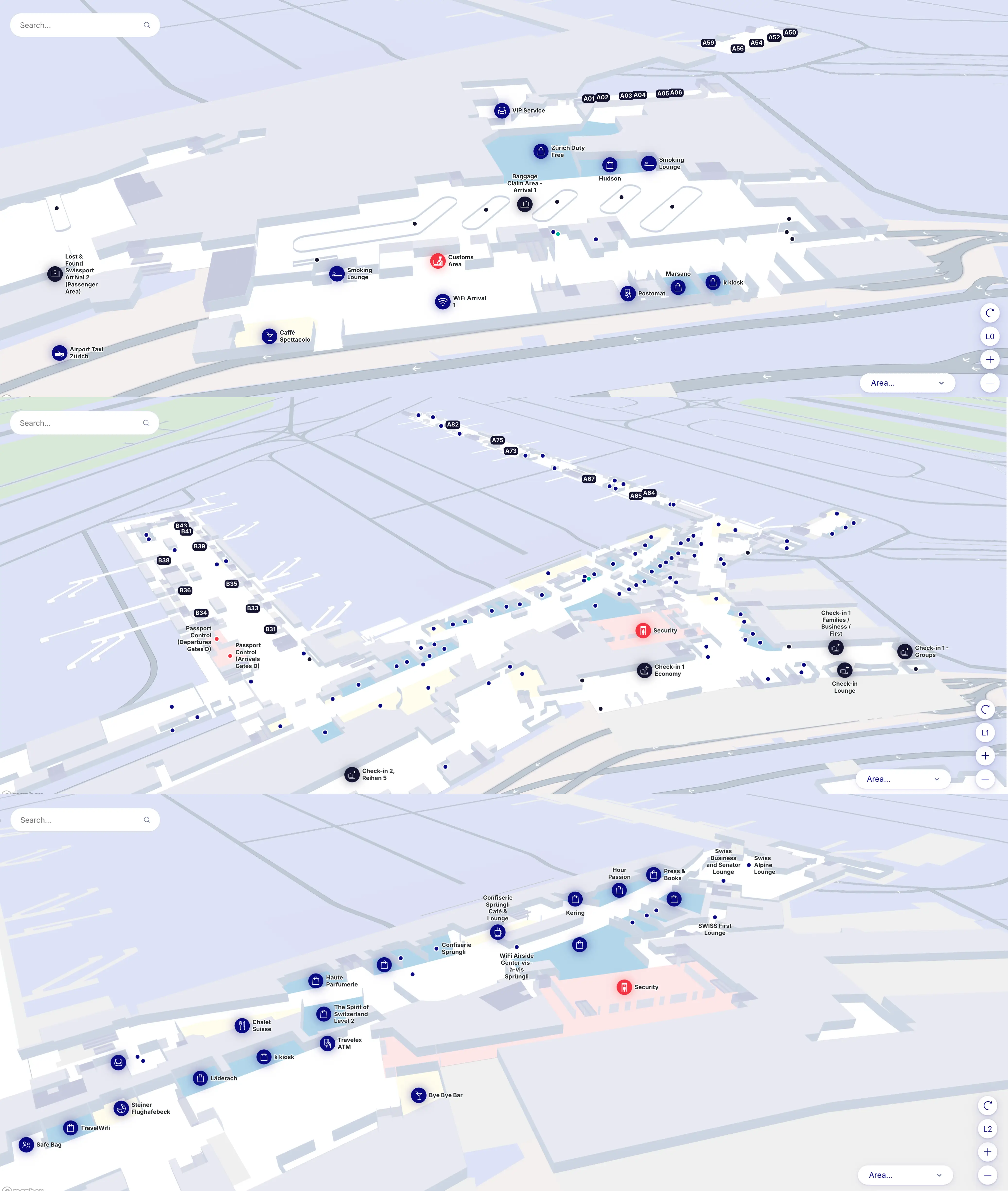

2026 Zürich Airport Terminal AB Map + Printable PDF
2026 wayfinding still works best when you ignore “Terminal 1/2” and navigate by piers and levels: Airside Center → Pier A/B/D, with Pier E reachable only by Skymetro. The operational chain that matters is E arrivals → descend to Skymetro → ascend into passport control → (possible) transfer security → up to the A/B concourse. Bus Gates D remain a downstairs branch off the B connector, not a separate terminal.
Zurich Airport Terminal AB Level 0 Map 2025

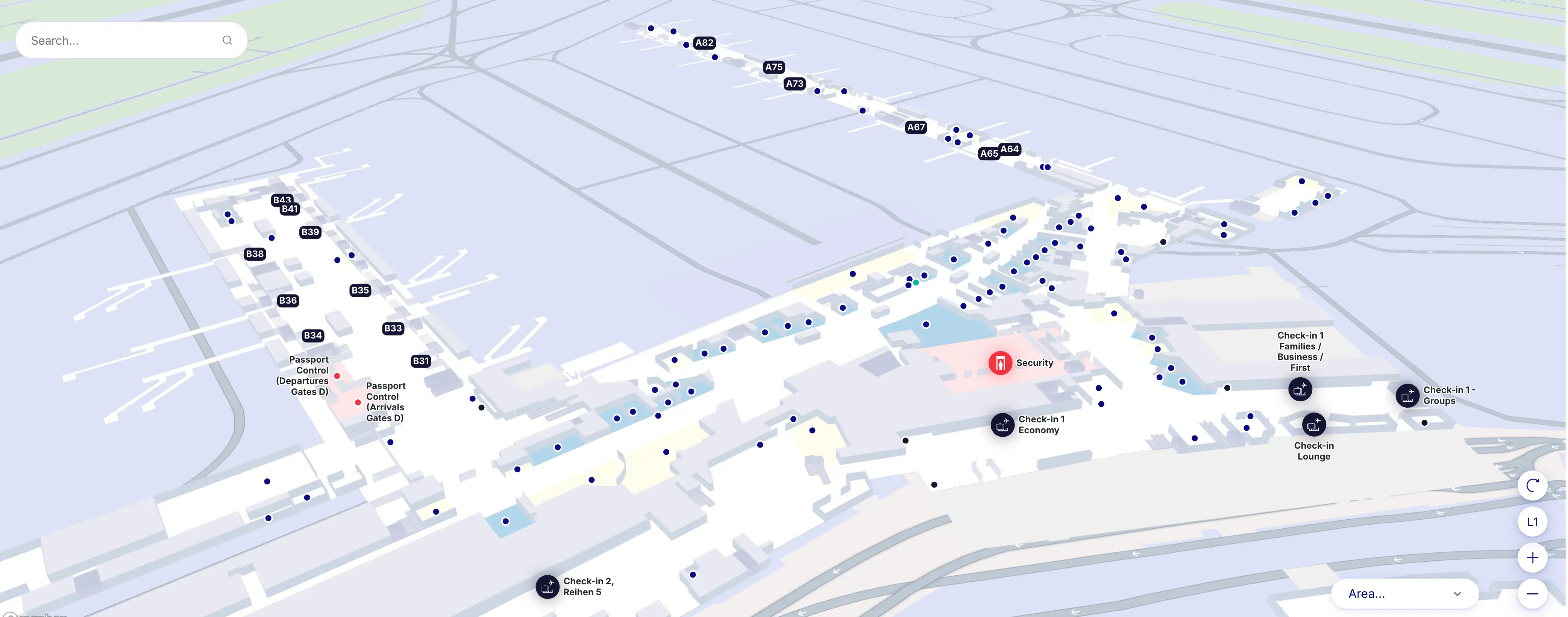

Zurich Airport Terminal AB Level 1 Map 2025

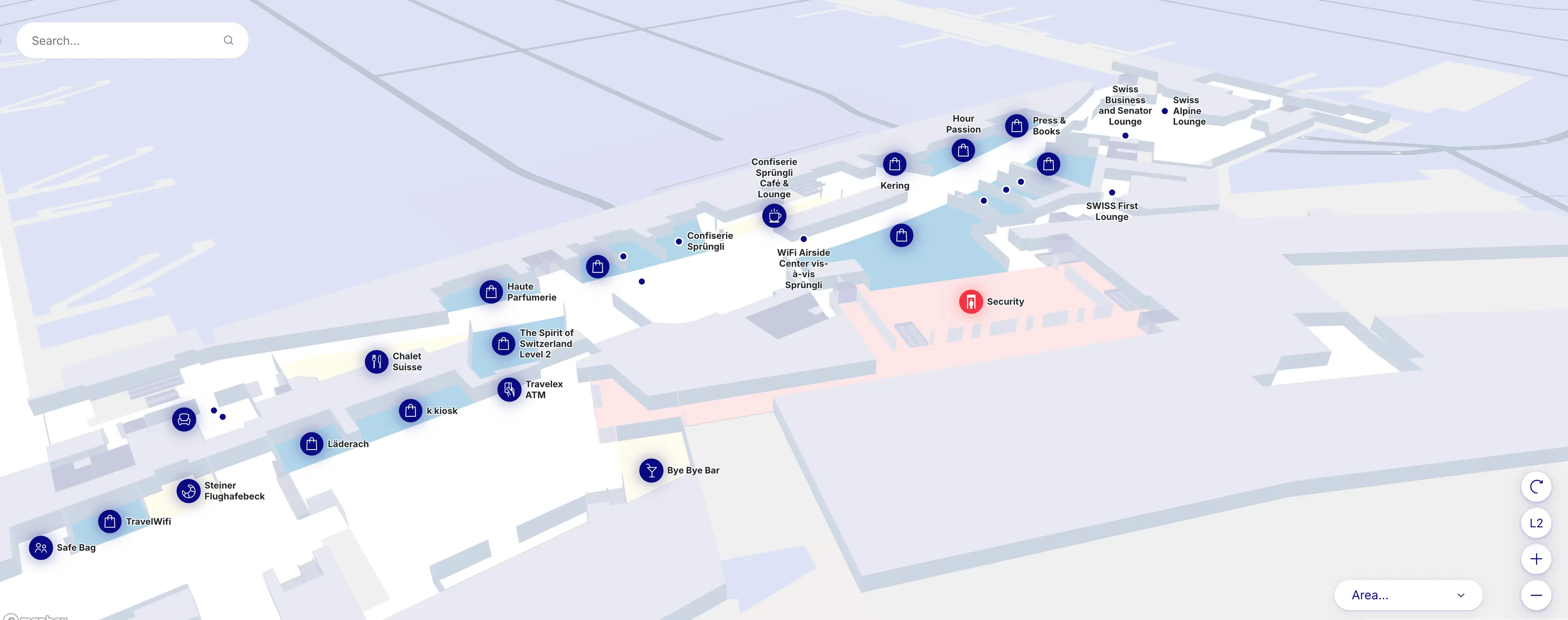

Zurich Airport Terminal AB Level 2 Map 2025
2026 Zürich Airport Terminal A/B Map Guide
What is the exact decision point (hallway fork) where travelers choose between “Terminal 1 / Terminal 2” directions, and where do those paths re-converge before “Gates A/B”?
The “Terminal 1 / Terminal 2” choice happens landside at the main escalator bank up from the rail-station/Airport Center level, not in the airside gate area. That fork is the first big wayfinding split when you enter from the train/bus hub: signs push you toward Check-in 1 (Terminal 1) versus Check-in 2 (Terminal 2).
Both paths re-converge at the single, shared security processing zone that feeds the Airside Center. After security, there is no separate “Terminal 1 gates” or “Terminal 2 gates” corridor: everyone emerges into the same Airside Center spine (duty-free/retail hall) before splitting outward to Pier A (Gates A) or Pier B (Gates B/D).
From the arrival flow in Pier E, where is the first clearly signed “Transfers A/B” entrance, and what is the shortest mapped path to it?
The first clearly signed “Transfers A/B” guidance appears immediately after you step off the jet bridge into Pier E’s central arrivals corridor on the gate level. That signage funnels you toward the pier’s middle atrium rather than letting you choose A vs B up front.
The shortest mapped path is a straight follow-the-corridor walk from your E gate toward the central Pier E atrium (the point where all arrival corridors converge), then directly into the large escalator/elevator banks that descend to the Skymetro station (Level -2). The key landmark is the Pier E central atrium: once you reach it, there is only one functional onward route for A/B transfers—down to Skymetro—because there is no pedestrian option to the main building.
Where is the Skymetro platform access located relative to the Pier E transfer corridor (which escalator/lift/stairs bank reaches the platform)?
The Skymetro platform is reached by the main central escalator/elevator banks in Pier E’s middle atrium, where every “Transfers” flow converges. From the Pier E transfer corridor on the gate level, you walk into the central atrium and then descend to Level -2; there isn’t a separate side entrance or alternate stairwell that bypasses this descent point.
The highest-certainty landmark is that central atrium junction roughly mid-pier (the area where the concourse “opens up” and vertical transport is concentrated). Use the biggest, most direct escalator bank down; the elevators beside it serve the same Skymetro level for passengers with strollers or mobility needs. If you stay on the gate level looking for “A/B,” you’ve gone too far—the transfer corridor’s intended exit is the down-to-train funnel at the atrium.
After exiting the Skymetro into the main building, where is the passport control checkpoint positioned on the route to Gates A/B?
Passport control sits immediately after you ascend from the Skymetro arrival level into the Airside Center arrivals hall, directly on the only through-path toward Gates A/B. The architecture forces all Pier E arrivals into this immigration line before you can reach the A/B departures concourse.
After the train, you go up from the platform into a broad hall where the immigration counters and e-gates span the width of the space. Once you clear immigration, the critical landmark is the first “Transfer A / Transfer B” vertical connection: the correct route is to peel off to the transfer escalators/elevators up to the Airside Center departures level, not to drift with the crowd toward baggage claim/customs channels. If you can still see baggage belt signage prominently ahead, you’re pointed the wrong way for A/B.
If using D-gate passport checks as an alternative, what is the mapped walking route from D passport control to the entrance of Pier E / E-gates?
The D-gate passport check alternative still routes you back through the Airside Center and down to the Skymetro; there is no direct D→E airside corridor. From the D/B sector, the objective is to reach the Skymetro station in the Airside Center, then ride to Pier E.
Walk from the D passport control area up into the B connector (the shared B/D entrance corridor), then continue toward the Airside Center’s central spine (duty-free/retail hall at the pier roots). From that hub, follow Skymetro/train signage to the vertical descent down to Level -2 (the Skymetro platform). After the ride, you arrive in Pier E at its Level -2 station and ascend via the central escalator/elevator banks into the Pier E concourse toward the E gates. The fixed anchor points are the B/D entrance corridor (where D goes down) and the Airside Center hub (where Skymetro access begins).
For transfers that require re-screening, where is the transfer security checkpoint located on the E→A/B path (and what are the nearest fixed landmarks)?
Transfer re-screening is positioned immediately after passport control on the Pier E → A/B route, before you’re released fully into the Airside Center departures concourse. It sits in the transit corridor that connects the immigration exit to the up-escalators toward Gates A/B.
The most reliable landmarks are the passport control hall itself (immigration booths/e-gates) and the first glass-partitioned “Transfer” routing immediately after it. Passengers from origins that require re-screening get channeled into security lanes with X-ray/scanner equipment adjacent to the immigration exit; passengers from “clean” origins typically bypass that channel and head directly to the “Transfer A / Transfer B” escalator bank up to the main concourse. If you see a split where one path feeds into screening equipment and the other continues toward the up-escalators, that’s the re-screening checkpoint interface.
Where exactly are Bus Gates D accessed from the main concourse, and what is the shortest mapped path from the A/B concourse center to the D bus-gate holding area?
Bus Gates D are accessed through the same entrance used for Pier B, with a deliberate down-level fork inside the B/D connector corridor. From the A/B concourse center (Airside Center hub), you don’t walk to a separate “D terminal”; you walk toward “Gates B / D,” then drop downstairs.
From the Airside Center spine, follow overhead signs for “Gates B / D” into the Pier B connector. About 50–100 meters into that connector, signage splits: B continues straight on the main level, while D directs you down via an escalator/elevator bank to the lower-level bus-gate holding area. The shortest path is Airside Center hub (duty-free/retail pivot) → B/D entrance corridor → first “D” down-escalator/elevator fork → D holding area. If you reach B gate numbers without going down, you’ve passed the D access point.
What is the maximum walking distance (meters) from the A/B central concourse junction to the furthest A-gate (end-of-pier worst case)?
The maximum walk from the A/B central concourse junction (Airside Center hub at the root of the piers) to the furthest A gate is about 650–750 meters, ending at Gate A86. That worst case is a straight, linear finger-pier walk with no shortcut.
The path runs from the Airside Center pivot point into Pier A’s main spine, then continues all the way to the pier tip. Moving walkways (travelators) help along the Pier A corridor, but the topology stays one-directional: if your gate is at the far end (A80s), budget 10–15 minutes at a normal pace from the hub area where Pier A begins. The most stable anchor is the Pier A entrance at the Airside Center; from there it’s a single continuous corridor to A86.
On the E→A/B transfer route, where are the closest restrooms positioned immediately after deplaning in E and after passport control?
The closest restrooms after deplaning in Pier E are in the arrivals corridor on the gate level before you descend to the Skymetro. That’s the last reliable restroom opportunity before the forced Skymetro + passport-control sequence.
After passport control in the main building, the closest restrooms are on the arrivals level near the immigration exit area and again after you take the “Transfer A / Transfer B” escalators up into the Airside Center departures spine. The practical anchor points are the Pier E central atrium (use restrooms before the down-escalators) and the immigration exit zone in the Airside Center (restrooms nearby on that level, with additional ones visible once you’re up in the central departures hall). There are no restrooms on the Skymetro platform or in the tunnel.
Which elevator/escalator banks are the highest-risk “wrong turn” paths when following “Transfers A/B,” and what map-verified correction loop returns you fastest?
The highest-risk wrong turn is taking the post-passport-control flow toward baggage claim/customs (Green/Red channels) instead of the “Transfer A / Transfer B” escalators back up to the airside departures level. That single mistake dumps you landside and breaks the airside transfer chain.
The error typically happens right after immigration when travelers follow the crowd through the customs/exit corridors rather than turning to the transfer vertical connections. If you realize you’ve entered the public arrivals/baggage-claim direction, the fastest correction loop is to continue out to the Airport Center landside level, then go to the nearest security entrance (Check-in 1 or Check-in 2) and re-enter through boarding-pass gates to re-clear security. The landmark logic is simple: if you see baggage belt signage or customs channel markers ahead, stop and backtrack immediately to the immigration exit area and look up for “Transfer A / Transfer B” before you pass the point of no return into arrivals.
In the A/B concourse, where are the nearest food options located within a short walk of the Skymetro/passport-control exit path?
The nearest food options are in the Airside Center retail spine you enter after taking the “Transfer A / Transfer B” escalators up from the passport-control level. That puts you directly into the central hub between Piers A and B, where the closest grab-and-go and cafes sit within a couple minutes.
Within that hub zone, the most anchor-stable options are Center Bar (prominent in the central hall) and Confiserie Sprüngli near the root of Pier A. Both are positioned before you commit to the long walk down Pier A, and both keep you inside the same Airside Center area you’ll use to reach Gates A or B. If you can see the Pier A entrance signage and the duty-free/retail corridor around you, you’re already in the right “safe zone” for quick food without adding new control points.
