Auckland International Airport International Terminal Map (Most Up-To-Date)
Auckland’s International Terminal is a three-level, two-pier layout that runs roughly north–south, with Arrivals processing funneled on Level 1 then down to the ground-floor baggage and biosecurity hall. Departures start landside on the ground floor, rise to Level 1 for AvSec and passport control, then spread out to Pier A (Level 1) and the longer Pier B (Level 2). It sits within the AKL hub complex, separated from the Domestic Terminal by a landside-only transfer route.
Map Table
| Zone | Connection | Walk Time |
|---|---|---|
| Ground Level (Level 0) | Check-in Zones A–E, Door 11 Arrivals exit, Transport Hub access | Door 11 → Transfer desk ~80 m |
| Level 1 | AvSec security, passport control, Pier A gates (1–10), immigration/eGates entry | Security exit → Pier A 3–5 min |
| Level 2 | Pier B gates (15–18/19), lounges, vertical access from retail core | Security exit → Gate 18 10–12 min |
| Landside Green Line | International ↔ Domestic pedestrian route | ~950 m, 10–15 min |
Auckland International Terminal Map Strategy
- Treat AvSec, immigration, and biosecurity as time-risk spikes, not routine steps; plan your path to where the queue physically forms so you don’t lose minutes backtracking.
- Lock in your International↔Domestic decision early: Green Line walk as the baseline, bus only if mobility or luggage makes it necessary.
- Use map-verified landmarks (Door 11, Door 4 escalators, Pier B escalators, Transport Hub Stop B) to minimize “wrong-corridor” drift when the terminal is crowded.
- Budget the longest internal walks (post-security to Pier B, Pier B arrivals to immigration) so the terminal doesn’t turn into a last-minute sprint.
2026 Auckland International Airport International Terminal Map + Printable PDF
Today’s International Terminal map for 2026 should be read as a choke-point map: border processing and AvSec queues are the real “distances,” and they expand or collapse unpredictably. The Transport Hub and the marked Green Line route remain the key orientation tools for International↔Domestic moves while the precinct transitions toward an integrated terminal build targeted for the late 2020s.

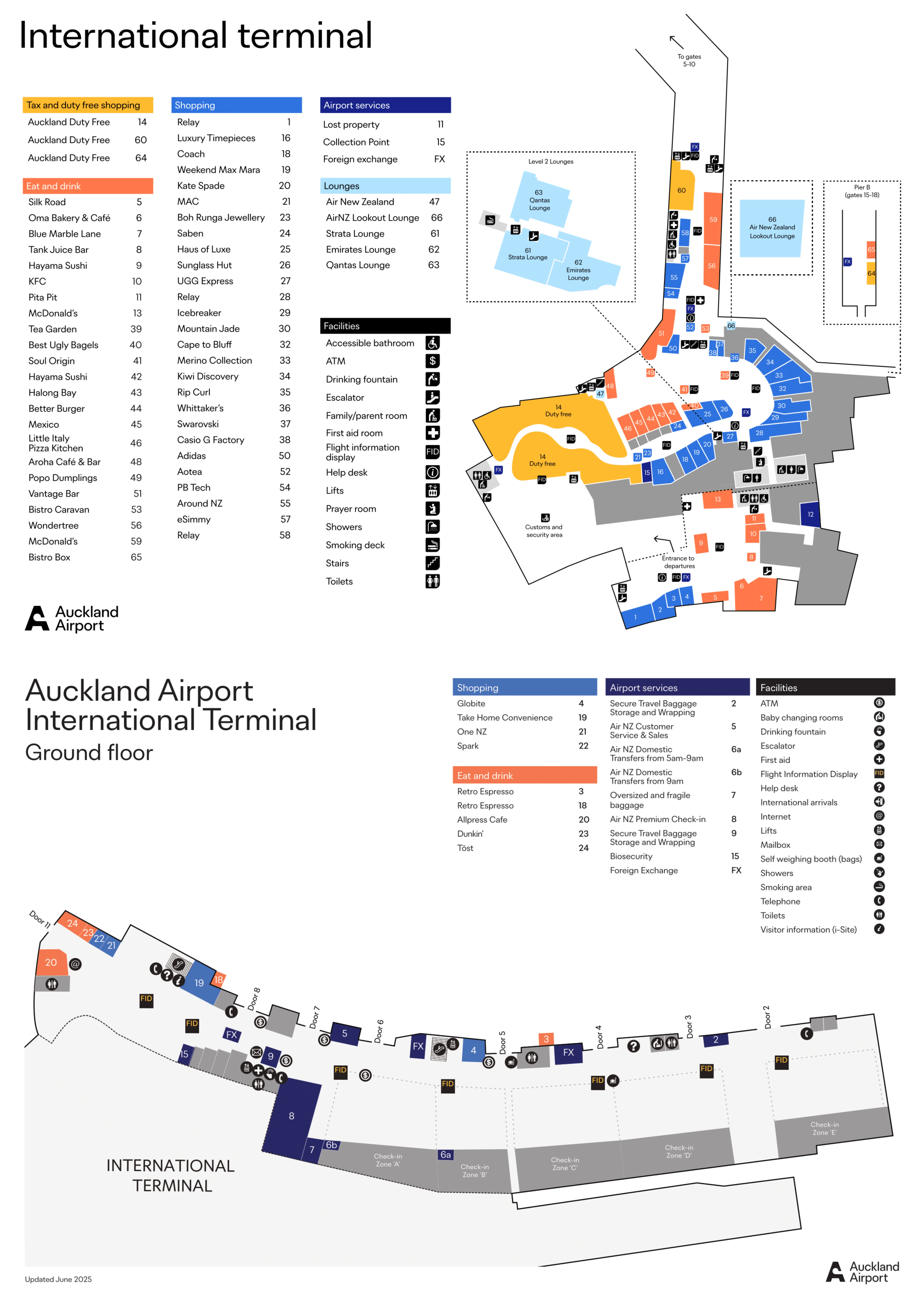

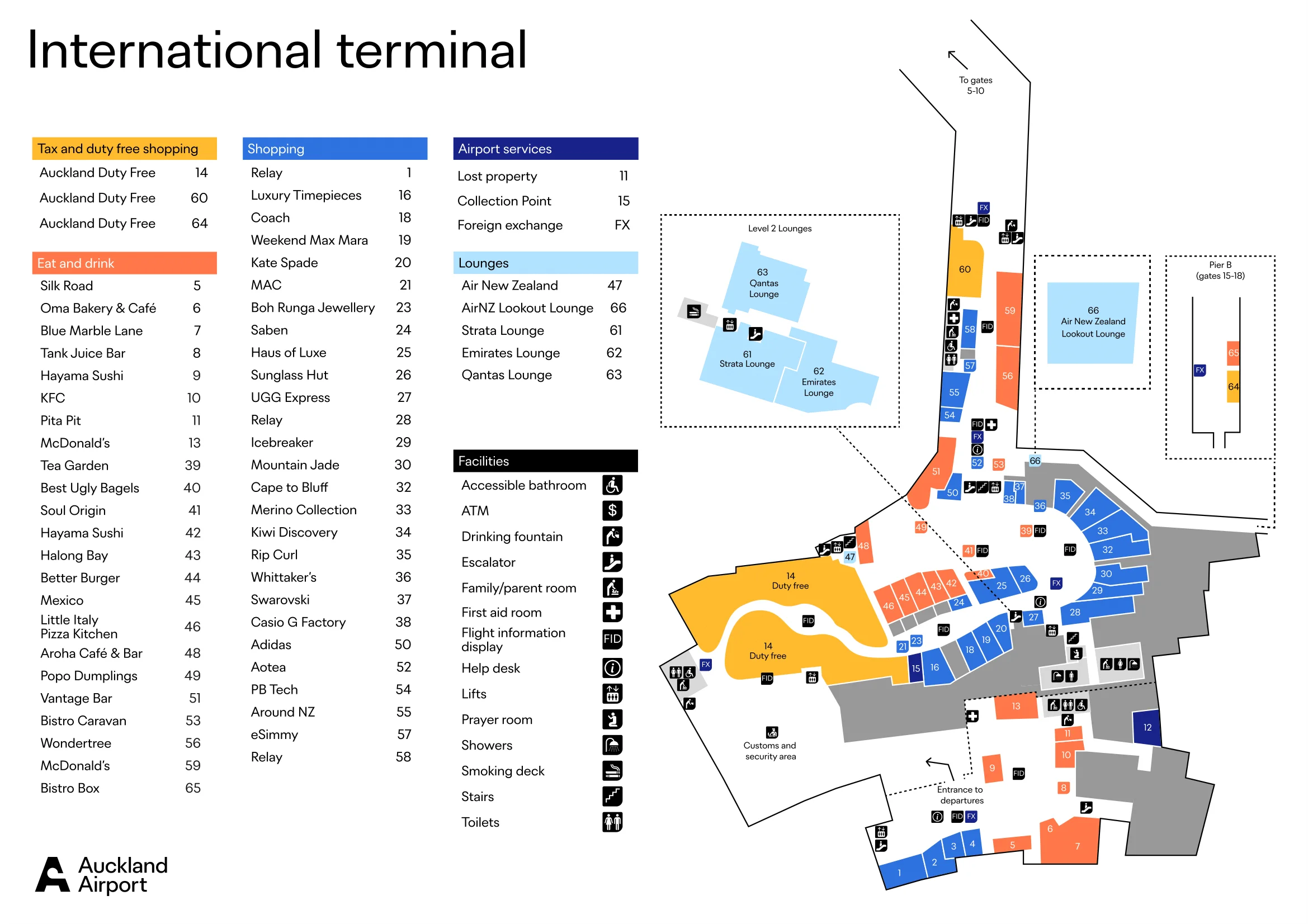

Auckland International Airport International Terminal First Floor Map 2025

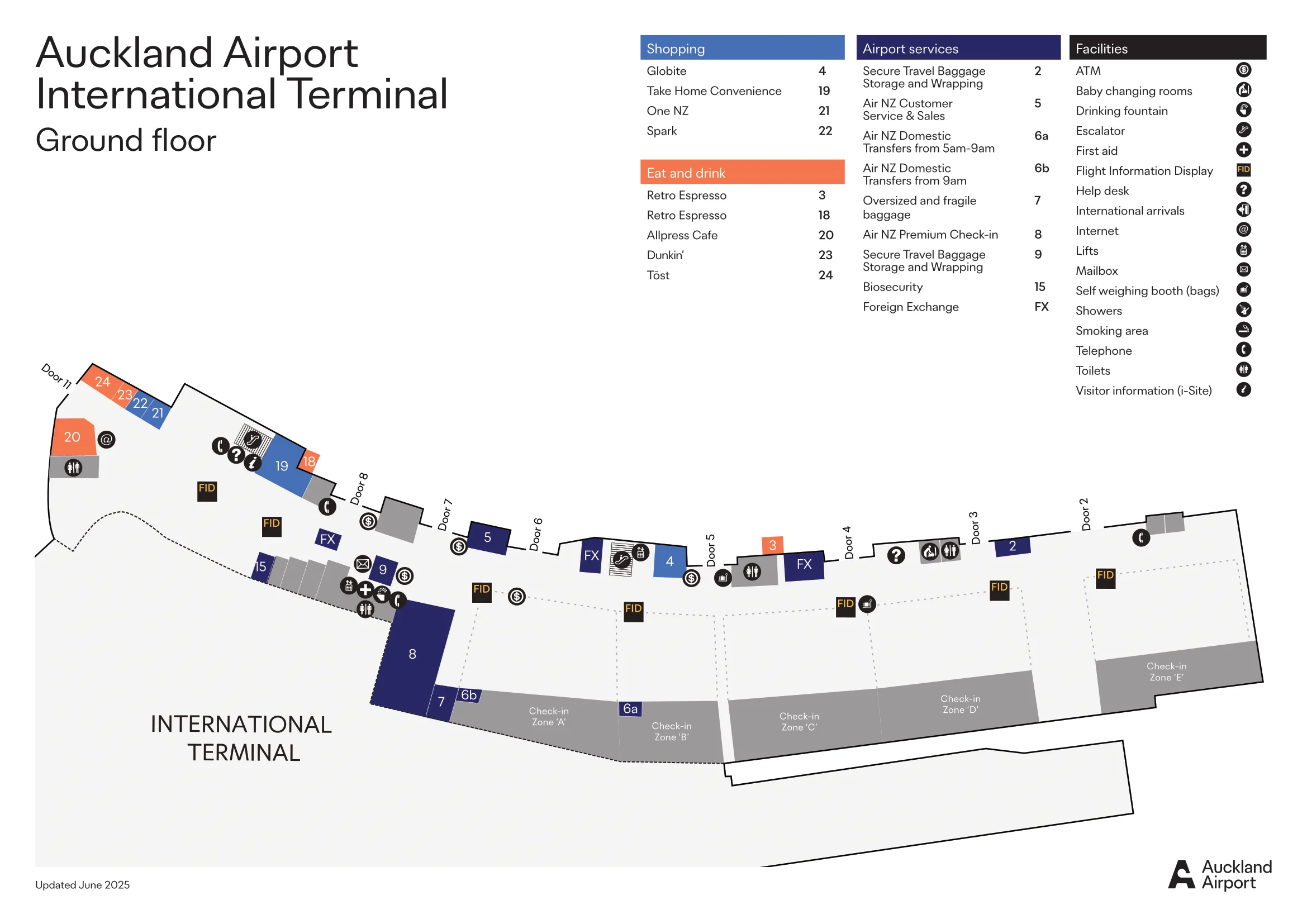

Auckland International Airport International Terminal Ground Floor Map 2025
2026 Auckland International Airport International Terminal Map Guide
What is the exact walking distance (meters) on the marked walking route between the International Terminal exit and the Domestic Terminal check-in entry?
Walking the marked Green Line route takes about 950 meters from the International Terminal arrivals exit at Door 11 to the Domestic Terminal check-in entry around Doors 2–3.
The route is landside-only: exit at Door 11, follow the painted Green Line along the public footpath beside the roadways, and stay on the pedestrian path until you reach the Domestic Terminal frontage. The most reliable anchor points are Door 11 on the international side and Door 2/3 on the domestic side, because construction and curb layouts can make “shortcuts” look tempting but add time if you end up crossing traffic twice.
Where is the International → Domestic baggage re-check point located relative to the International arrivals exit, and what is the walking distance to it?
Walking to the International→Domestic baggage re-check point takes about 80 meters from the International arrivals exit at Door 11.
The re-check point for Air New Zealand domestic connections sits on the ground floor near the Air New Zealand Premium Check-in area, signed for “Domestic Transfers.” From Door 11, stay inside the landside arrivals/check-in hall and follow the Domestic Transfers signage toward the Air New Zealand counter zone (often referenced as Zone A/Zone B in the check-in area). This is the pivot point for the 60-minute rule: if your domestic departure is under 60 minutes away, you may be forced to carry bags to the Domestic Terminal instead of re-checking here.
Where does the free inter-terminal transfer bus pick up at the International Terminal, and what is the walking distance from Arrivals to that stop?
The free inter-terminal transfer bus picks up at Bus Stop B in the International Terminal Transport Hub, about 150 meters from International Arrivals at Door 11.
From Door 11, head out to the curb and cross into the covered Transport Hub structure directly in front of the terminal frontage, keeping to the signed pedestrian crossings. Bus Stop B is the labeled stop used for the terminal shuttle, and it’s the same transport interface area used for other ground transport staging. If you’re timing a tight connection, anchor on Door 11 → Transport Hub → Stop B, because the wait interval (up to 15 minutes) is usually a bigger variable than the short walk.
Where does the free inter-terminal transfer bus drop off at the Domestic Terminal, and what is the walking distance from the drop-off to typical airline check-in counters?
The free inter-terminal transfer bus drops off at Bus Stop C outside Door 2 of the Domestic Terminal, with a walk of under 50 meters to Air New Zealand check-in and about 150 meters to Jetstar check-in.
From the Bus Stop C curb, Door 2 is the closest entry and aligns with the Air New Zealand Zones A/B check-in area, so it’s a short straight-in move for most Air NZ domestic flights. For Jetstar, continue west along the terminal frontage toward Door 5, which is the nearest entry to Zone C and adds the extra walking distance. The key map anchors are Bus Stop C, Door 2 (Air NZ), and Door 5 (Jetstar).
Inside the International Terminal, what is the walking distance from security screening (AvSec) to the furthest common international gate/pier area (e.g., Pier B vs Pier A)?
Walking from the post-security exit to the furthest common gate area (Pier B, around Gate 18) is about 800 meters.
After AvSec on Level 1, the standard path runs through the duty-free/retail core, then follows signage for Gates 15–19 toward the southern extension. The Pier B route includes a vertical transition up to Level 2 via escalators near the central retail core, then a long straight push down the pier. By comparison, Pier A gates (1–10) are typically a 200–400 meter walk from the same post-security core, so Pier B is the distance that most often surprises travelers—especially when boarding is already underway.
On arrivals, what is the walking distance from the furthest international arrival gate area to the immigration/eGate hall entrance?
Walking from the furthest international arrival gate area (around Gates 18/19 on Pier B) to the immigration/eGate hall entry is about 800 meters.
Arrivals from Pier B feed into a long Level 1 corridor toward the main immigration zone, so the “clock” starts before you ever see a queue. Use the carved “tomokanga” gateway as the anchor that you’re reaching the immigration hall intake; it marks the transition from the arrivals corridor into the processing area. This is why Pier B arrivals can feel deceptively slow even when eGates are moving fast—your first 10 minutes can be pure walking before processing begins.
Where does the customs/biosecurity inspection queue physically form (which corridor/hall area), and what are the nearest landmarks (belt numbers/doors/desks) to anchor it on a map?
The customs/biosecurity inspection queue forms on the ground-floor biosecurity hall immediately after baggage claim, typically stacking between the baggage carousels and the row of x-ray screening lanes.
The most reliable anchors are Baggage Carousels 5–8 (the common international reclaim belts), the seven x-ray machines arranged in a line, and the amnesty bins positioned near the final approach to screening. As you leave the belt area, the queue usually consolidates into a single main line that fans into the x-ray lanes, so “between belts 5–8 and the x-ray row” is the map-true location. If you’re scanning for it fast, look for the amnesty bins and the x-ray conveyor openings—they mark where the line is actually feeding.
For early-morning international departures, where is the physical start point of the security/processing queue before it opens, and what is the shortest route from check-in to that queue start?
The security queue starts on Level 1 directly in front of the AvSec security gates, and before opening it commonly extends back into the Level 1 landside corridors toward the public food court area.
The shortest route from check-in is to use the central escalators near Door 4: from the ground-floor check-in hall, walk to Door 4, go up to Level 1, and turn toward the AvSec entry frontage where the line forms. The operational pinch is the typical ~04:30 opening for security and passport control, which can create a long “pre-queue” even though the terminal building is open. Anchor on Door 4 escalators → AvSec gates, because that’s where the queue head physically locks in.
What is the walking distance from the International check-in zone to the passport control entry using the standard passenger path?
Walking from the central International check-in area (around Zone D) to the passport control entry is about 150 meters on the standard passenger path.
The typical route is a short landside walk to the central vertical links, then up to Level 1 where AvSec and passport control sit in sequence. A practical landmark chain is Zone D check-in → central escalators near Door 4 → Level 1 processing frontage. The raw distance is short, but the time can balloon in the early-morning bank because the queue can begin well before the AvSec gates, turning a 2–3 minute walk into a much longer “get to the line” move.
Where are the fastest curbside pickup / rideshare meeting zones located relative to International Arrivals doors, and what is the walking distance to each?
The fastest curbside pickup zones cluster outside International Arrivals at Door 11, with rideshare in Lane 1 about 100 meters away and taxis/scheduled shuttles in Lanes 2–3 about 120 meters away.
| Pickup option | Where to go | Walk distance from Door 11 |
|---|---|---|
| Rideshare (e.g., Uber) | Lane 1 pickup area outside Door 11 | ~100 m |
| Taxis / Super Shuttle | Lanes 2–3 outside Door 11 | ~120 m |
| Off-site shuttles | Off-site Transfer Zone behind the Pullman Hotel, north of the Transport Hub | ~360 m |
