Taiwan Taoyuan International Airport (TPE) uses a modified “H” layout: Terminal 1 and Terminal 2 run in parallel with north–south concourse zones (A/B in T1, D/C in T2) and transfer nodes linking them, all within northern Taiwan’s main international hub. Most confusion comes from choosing the correct T1↔T2 path (airside connector vs Skytrain vs landside) and handling vertical level changes that quietly add time.
Map Table
| Terminal | Key Airlines | Primary Function | Transfer Mode |
|---|---|---|---|
| Terminal 1 (Zones A/B) | China Airlines, Cathay Pacific, regional carriers | legacy terminal, dual concourses | airside connector, Skytrain, landside |
| Terminal 2 (Zones C/D) | EVA Air, wide-body heavy schedules | vertically stratified terminal | Skytrain + Level 2 transfer security, airside connector, landside |
| T1–T2 South Airside Connector | B ↔ C axis | fastest adjacent-zone bridge | moving walkways, no wait time |
| Skytrain Nodes | near T1 concourse root; T2 Level 2 drop-off | inter-terminal people-mover | platform + vertical transitions |
Taiwan Taoyuan International Airport Map Strategy
- Choose the T1 Zone B ↔ T2 Zone C airside connector when possible; it cuts out Skytrain wait time and avoids backtracking to the concourse root.
- Treat post-Skytrain transfer security in Terminal 2 as the make-or-break step; the walk is short, but the screening queue can add a fixed 15–25 minutes.
- Identify the first “Transfer vs Immigration” split in Terminal 2 arrival corridors early; one wrong escalator toward Immigration turns a clean transfer into a landside reset.
- For Airport MRT wayfinding, navigate by level changes and anchor landmarks (B2 station access via retail/food-court buffers) rather than assuming a single direct “Arrivals → Train” corridor.
2026 Taiwan Taoyuan International Airport Map + Printable PDF
Operational flow at 2026 TPE still rewards horizontal movement and punishes unnecessary level changes: the B↔C airside connector is the most predictable T1↔T2 option, while Skytrain transfers into Terminal 2 commonly funnel into Level 2 transfer processing with a screening step before reaching Level 3 gates. A printable map should make those decision points unmissable.

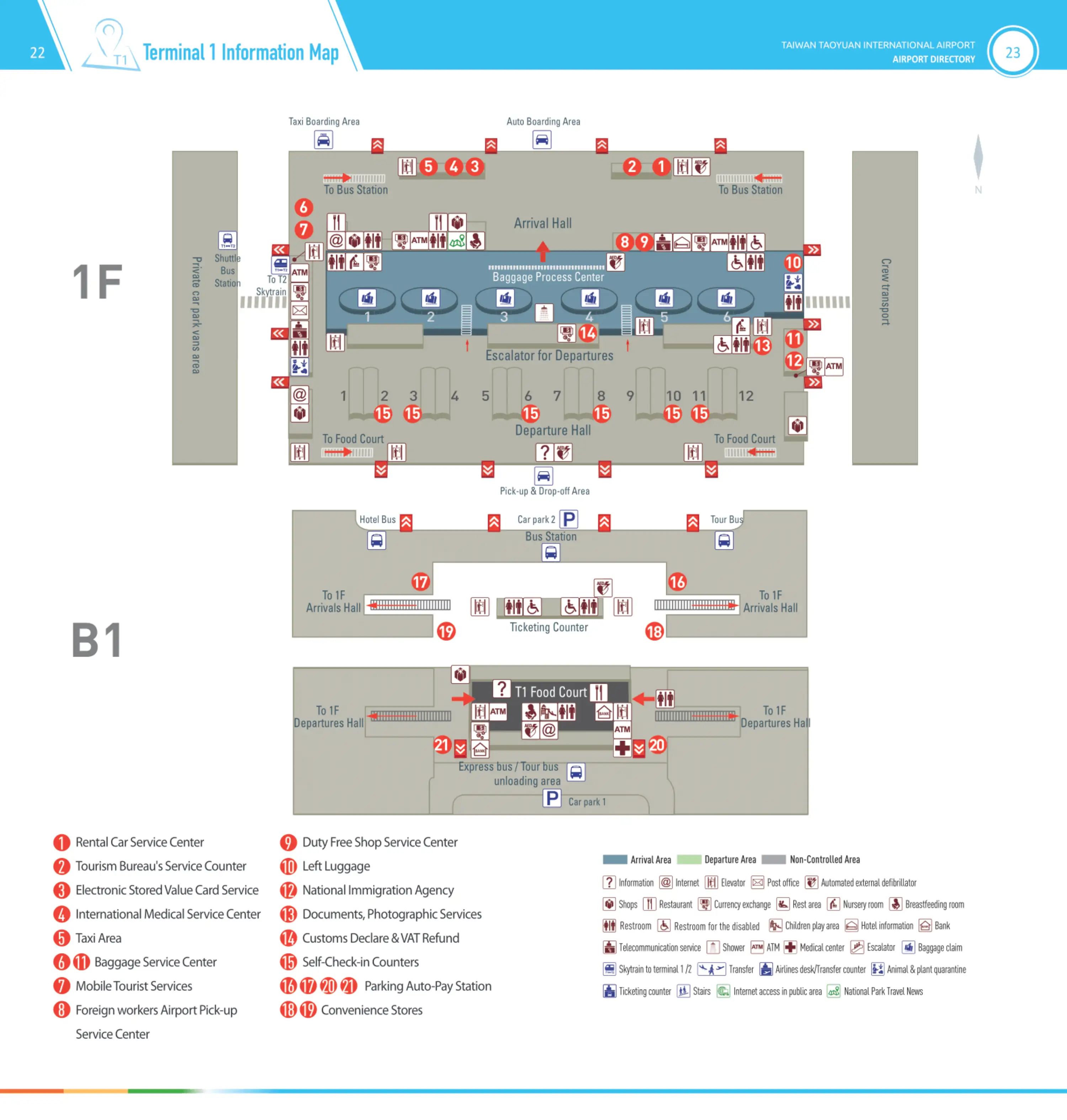

Taiwan Taoyuan International Airport Terminal 1 Level B1 1 Map 2026

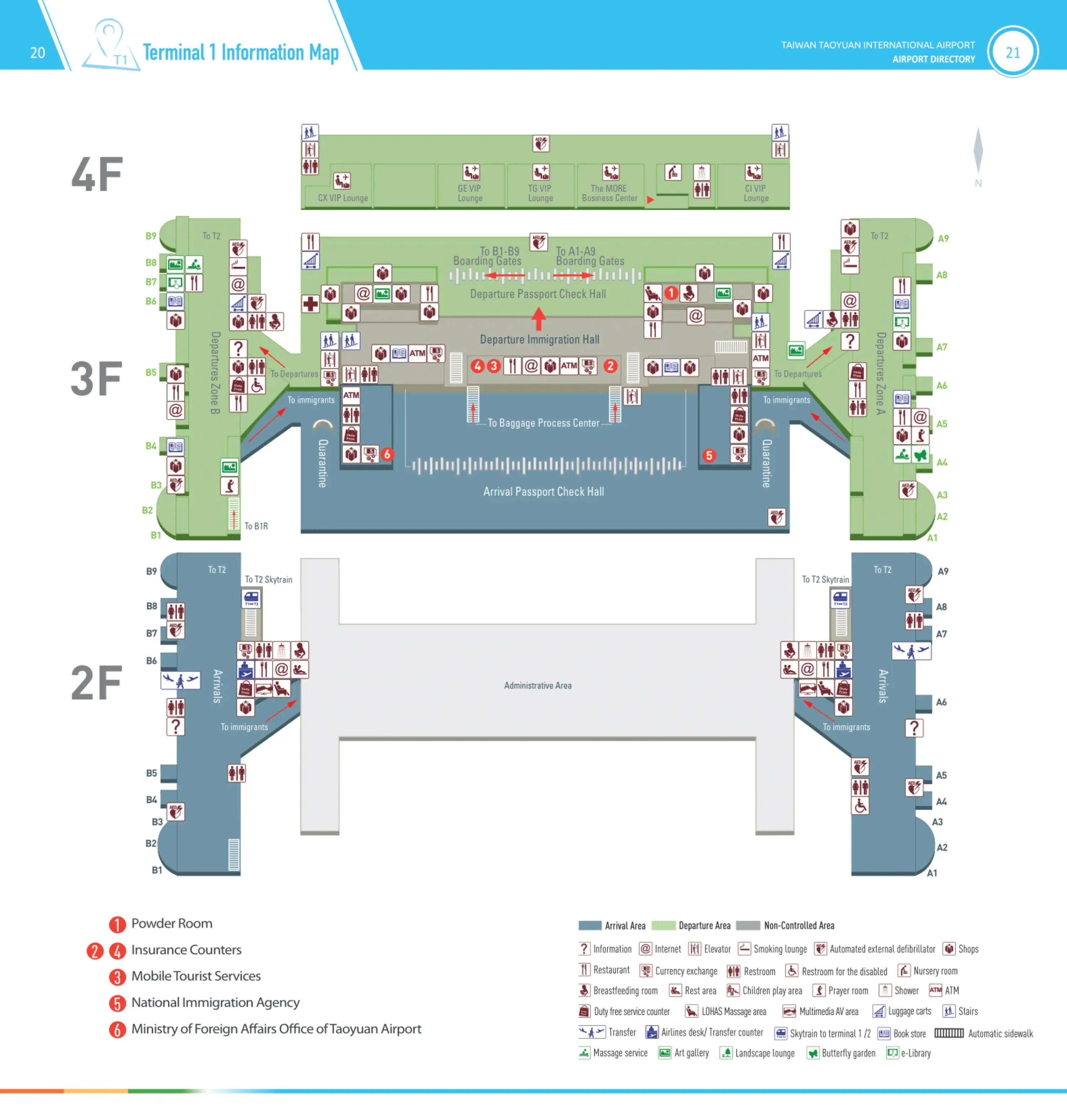

Taiwan Taoyuan International Airport Terminal 1 Level 2 3 4 Map 2026
Taiwan Taoyuan International Airport Terminal 2 Level 1 2 Map 2026

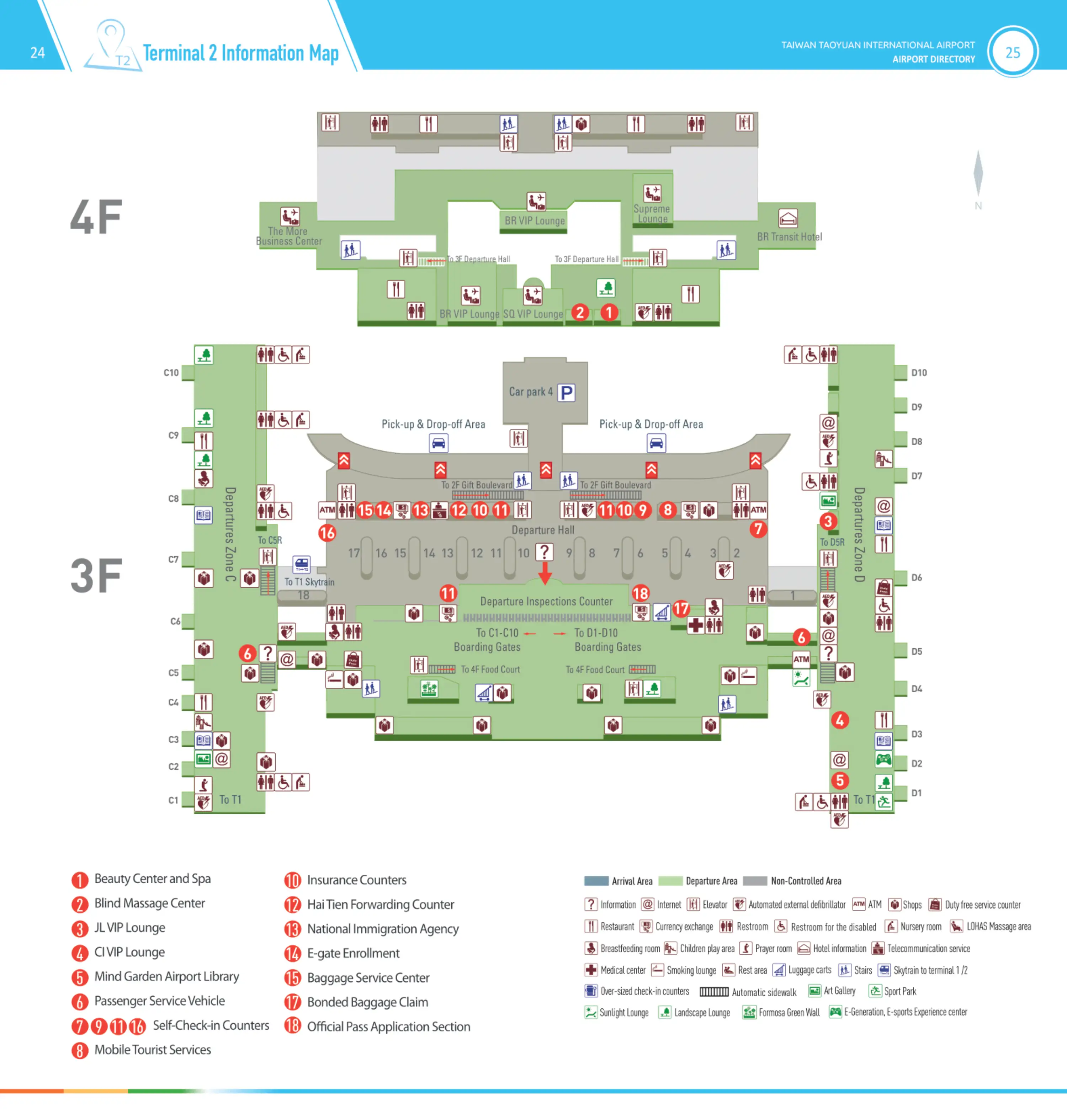

Taiwan Taoyuan International Airport Terminal 2 Level 3 4 Map 2026
Taiwan Taoyuan International Airport Terminal 2 Level B1 B2 Map 2026
2026 Taiwan Taoyuan International Airport Map Guide
What is the exact walking distance (meters) from the Terminal 1 B-gates airside connector entrance to the Terminal 2 C-gates airside connector exit?
650–800 meters is the mapped walking span from the Terminal 1 Concourse B end (near the B high-number gate area) through the South Airside Connector to the start of Terminal 2 Concourse C (near Gate C1).
The connector route stays fully airside and is built as a dedicated corridor with moving walkways, so the distance is mostly a single continuous linear path rather than a series of level changes. The biggest time risk is not the meters, but choosing the wrong start point: backtracking toward the Skytrain area near Gate B6 adds extra walking before you even enter the connector.
Where is the Terminal 1 Skytrain (people-mover) platform located relative to the nearest Transfer Counter / Transfer Lounge (name + floor), measured in meters on the terminal map?
50–80 meters is the mapped walking distance from the Terminal 1 Transfer Counter area (Zones A/B) to the Terminal 1 Skytrain platform access lobby on Level 2.
The Skytrain station in Terminal 1 sits at the concourse “root” between the entrances to Concourse A and Concourse B on the Arrivals/Transfer level (Level 2), adjacent to the Transfer Counter Zone A / Zone B node. Queue spillover from the transfer desks can partially block the approach, so use the concourse-root landmarking: the Skytrain lobby is near the Gate A7 / Gate B6 direction, but it is a distinct station entrance rather than the gate itself.
Where is the post-Skytrain transfer security checkpoint in Terminal 2 (exact map position), measured as walking distance from the Skytrain drop-off point?
120–180 meters is the mapped walking distance from the Terminal 2 Skytrain drop-off point on Level 2 (near the C6/D5 arrival-side area) to the Terminal 2 transfer security checkpoint on Level 2.
The checkpoint sits in Terminal 2’s Level 2 central transfer node adjacent to the Transfer Counter Zone C/D area, before you can go up to Level 3 departures. Follow “Transfer” signage along the Level 2 arrival corridor toward the central atrium junction and avoid the more prominent forward/down flow toward Immigration. The walk is short, but the screening queue commonly adds an additional 10–20 minutes.
What is the exact walking distance from Terminal 2 baggage-claim exit to the Terminal 1–Terminal 2 inter-terminal shuttle/skytrain pickup point (landside route)?
250–350 meters is the mapped landside distance from the Terminal 2 post-customs arrivals/baggage-claim exit (1F) to the landside inter-terminal Skytrain pickup point in Terminal 2 (3F, near Check-in Counter 22).
This route is distance-plus-vertical: you exit into the public Arrivals Hall on 1F, reach the nearest elevator/escalator bank, go up to the Departures Hall (3F), then walk south along the check-in hall to the Skytrain waiting area by Counter 22. Crowds and elevator waits are the usual penalty, not the horizontal walk.
What is the shortest mapped route (and distance) from the center of Terminal 2 arrivals/customs exit to the Taoyuan Airport MRT entrance for Terminal 2?
150–200 meters is the shortest mapped route from the central Terminal 2 arrivals/customs exit (1F) to the Terminal 2 Taoyuan Airport MRT entrance at A13 (B2).
| Route segment | Landmark anchor | Distance band |
|---|---|---|
| Arrivals exit to MRT descent | “Airport MRT / High Speed Rail” signs from 1F arrivals hall | within the first 30–60 m |
| Descent to B2 | elevator / inclined travelator banks toward transit levels | vertical drop (primary choke point) |
| B2 approach to station gates | corridor skirting the B2 Food Court to A13 ticket gates | remaining 60–120 m |
Which specific Door/Exit number on the Terminal 1 arrivals level is the closest mapped point to the Airport Express (MRT) access path, and what is the walking distance?
No specific Door/Exit number is the closest mapped reference for Terminal 1’s MRT access; the South Side arrivals flow near the South Meeting Point is the usable map anchor instead.
Terminal 1’s MRT path is best navigated by direction and landmarks: from the arrivals/customs exit (1F), turn toward the south side of the hall to reach the primary escalator bank down to B1, then continue through the B1 food-court area to the second descent to B2 for A12 (Airport Terminal 1) station access. The mapped walking distance from the south-side arrivals anchor to the MRT access sequence is about 120–160 meters, excluding vertical queuing delays.
Where exactly is the “quiet/free lounge-like seating area near the VIP lounges” in Terminal 1 (floor + nearest landmark), and what is the mapped walking distance from the main airside concourse center?
The Airport Experience Zone on Level 4 is the quiet, free lounge-like seating area near the VIP lounges in Terminal 1, about 150–250 meters from the main airside concourse center.
From the Terminal 1 airside atrium on Level 3, follow signs toward the VIP/airline lounges and use the nearby stairs or elevator up to Level 4. The space sits next to the paid lounge cluster, anchored by Plaza Premium and China Airlines lounge landmarks, and is easy to miss because signage visually prioritizes “VIP Lounges” over the free rest zone.
What is the mapped walking distance from Terminal 1 central security exit (airside) to the nearest cluster of food/coffee concessions in Terminal 1 (by location label on the map)?
30–60 meters is the mapped walking distance from Terminal 1’s central security exit (airside, Level 3) to the nearest food/coffee concession cluster at the main atrium / concourse-root junction.
The concessions “oasis” sits immediately after the duty-free retail funnel where Concourse A and Concourse B branch off from the central building. The practical map rule is to eat before committing down a long concourse finger: once you walk deep toward gates like B9, options thin out into a retail/food dead zone with only sporadic kiosks.
From Terminal 2 Zone C/D arrival corridor, what is the mapped walking distance to the nearest “Transfer” signage decision-point (the first major split where a wrong turn costs the most distance)?
50–300 meters is the mapped walking distance from the Terminal 2 Zone C/D arrival corridor to the first major “Transfer vs Immigration” signage split, depending on which gate you arrive at.
The decision point sits at the concourse-to-terminal-block junction (the central atrium node) where the corridor’s “stem” meets the main building. “Immigration/Arrivals” typically pulls you forward and down toward prominent escalators, while “Transfer” routes laterally toward the Level 2 transfer processing area and Skytrain lobby. Missing this split and descending to Immigration is the high-penalty error because it forces a landside reset.
What is the mapped walking distance from Terminal 2 curbside taxi stand to the Terminal 2 check-in row area (departure hall entry → counters), using the shortest public path shown on the map?
20–45 meters is the mapped walking distance from the Terminal 2 curbside taxi stand on the Departures level (3F) to the nearest check-in counter islands inside the departure hall.
The path is essentially straight-line induction: step off at the 3F curb, enter the automatic doors, then walk directly to the first bank of check-in islands. The real penalty is positional, not distance—being dropped at the wrong end of the curb can add a long hall walk to reach higher-numbered rows (toward the south end) or lower-numbered rows (toward the north end).
What is the mapped distance from Terminal 1 immigration hall entrance to the first passport-control bank (i.e., the point where queues begin), measured along the walking path shown on the terminal layout?
20–40 meters is the mapped distance from Terminal 1’s immigration hall entrance (post-health/thermal screening) to the first passport-control bank where queues begin.
The layout is compact: you pass the health-screening pinch point, enter the wide but shallow immigration hall, and the stanchions/banks begin almost immediately. The variable is queue spillover rather than walking distance—at peaks, lines can push back into the health-check corridor, making the “queue start” effectively earlier than the physical bank location.
Where is the closest elevator/escalator pair linking Arrivals → Departures in Terminal 1 (exact map location), measured from the main Arrivals exit?
50–100 meters is the mapped walk from Terminal 1’s main Arrivals exit (1F central) to the closest escalator/elevator pair connecting up to the Departures Hall (3F).
The vertical circulation node sits in the Terminal 1 central atrium landside, positioned between the north and south arrivals flows and visible from the main meeting-point area. Walk inward from the arrivals doors toward the open atrium core, then take the prominent escalator bank or the adjacent glass elevators straight up to Level 3 departures.
