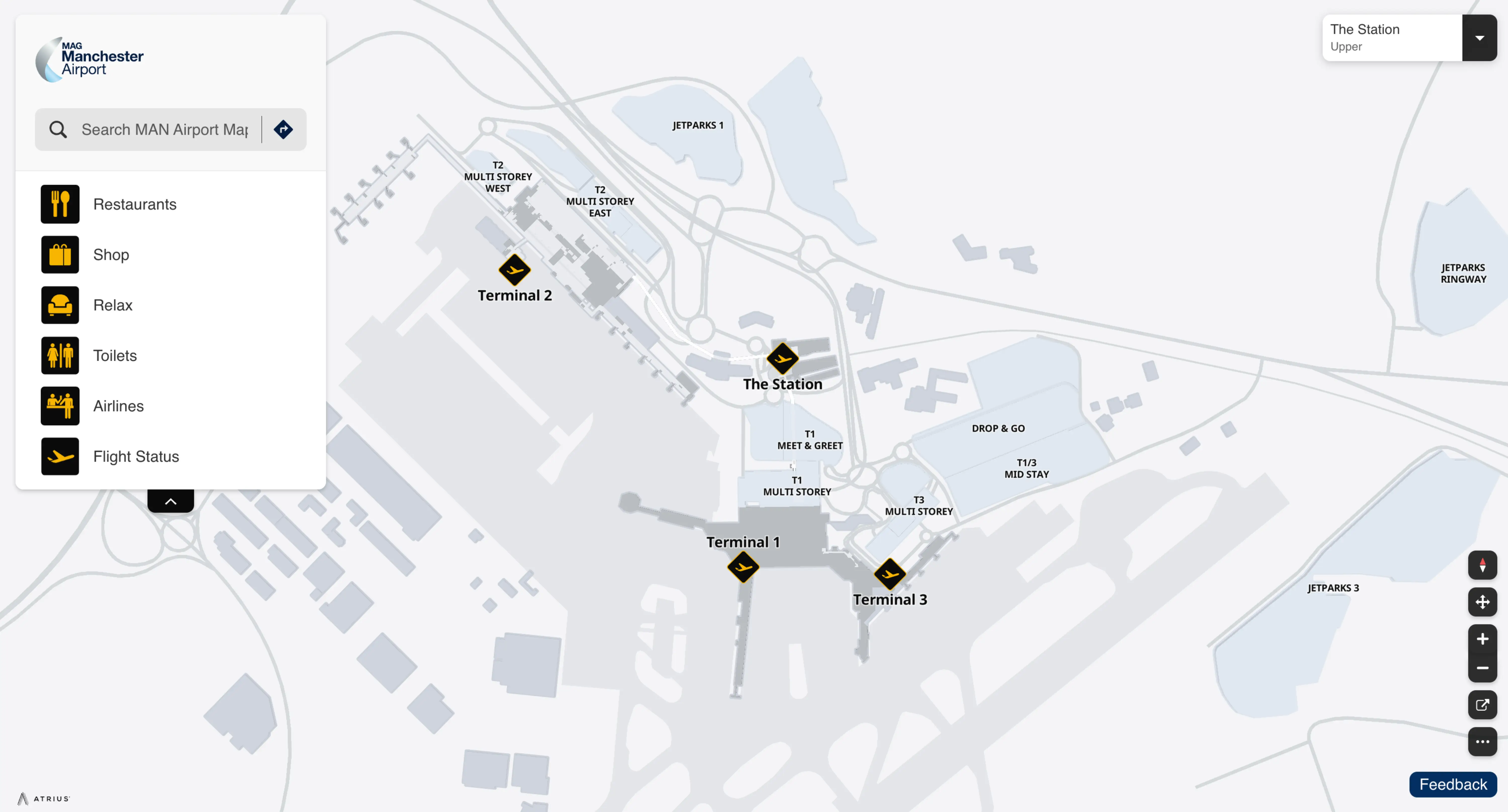

Manchester Airport Map (Most Up-To-Date)
Manchester Airport spans three terminals in a linear, connected layout with the rail station as the central hinge: Terminals 1 and 3 sit as a tight, legacy pair on one side, while the expanded Terminal 2 stretches out as a larger “super-terminal” on the other. The enclosed Skylink bridges form the main spine between terminals and the Station at the North West UK airport hub, but distances (and a few vertical chokepoints) make orientation and decision points matter.
Map Table
| Terminal | Key Airlines | Primary Function | Transfer Mode |
|---|---|---|---|
| Terminal 1 | mixed short-haul | legacy terminal | Skylink spine, moving walkways |
| Terminal 2 | Virgin Atlantic, TUI, Singapore Airlines | long-haul, modern expanded facilities | Skylink bridge, escalators, lift bank |
| Terminal 3 | Ryanair, British Airways (domestic) | domestic, low-cost, high-compression security | short internal links, airside connector to T1 |
| The Station | rail, tram, bus | intermodal hub | Skylink junction, Radisson Blu access |
Manchester Airport Map Strategy
- Treat Terminal 3 as a volatility zone: plan around the security “pressure cooker” and assume queue topology can spill back past the check-in hall toward the entrance doors at peak times.
- Use deterministic decision points, not vibes: commit early to paid drop-off vs JetParks Free Drop-Off before you reach the terminal loop, because the road geometry punishes missed turns.
- Route around vertical choke points at Terminal 2 Arrivals: escalators are the bypass for passengers not using trolleys, while trolley users get mechanically forced into lift-bank latency.
- Navigate the Skylink like a measured corridor, not a “short hop”: the Station is the hinge, Terminal 2 is the long leg, and the walk-versus-transfer ambiguity disappears once you anchor everything to the Station junction.
2026 Manchester Airport Map + Printable PDF
Major works remain the defining reality at 2026 Manchester Airport: Terminal 2 operates at super-terminal scale, while Terminal 1 and Terminal 3 retain a compressed footprint that amplifies queue spikes and choke points. Printing a map is most useful when it highlights the Station-centric Skylink spine, the long walk commitment to T2, and the landside cost-decision points around drop-off and pick-up.
2026 Manchester Airport Map Guide
What is the exact walking distance (meters) from Terminal 3 security exit to the first gate cluster passengers reach airside?
Walking distance is approximately 150 meters from the Terminal 3 security exit to the first gate cluster passengers hit in the main departures area (Gates 40–55 zone). That measurement assumes you follow the forced route out of the security search area through the World Duty Free exit path and into the central departure lounge where Gate 40-range signage begins.
| Reference point | What you’re measuring to | Distance |
|---|---|---|
| Terminal 3 security exit | First gate cluster (Gates 40–55 area, near central seating after Duty Free) | ~150 m |
Where exactly is the Terminal 3 “Timeslot” check desk located relative to the standard security entrance (e.g., X meters before scanners, left/right)?
The Terminal 3 TimeSlot check desk sits immediately adjacent to the standard security entrance, on the left-hand side as you face toward the security search area. It’s positioned at the same “front edge” of the security queueing zone rather than deeper near the scanners, so you reach it before committing into the main serpentine line.
Approach the main Terminal 3 security entrance from the check-in hall and stop at the point where passengers split into lanes. Look left for the TimeSlot vertical signage and a small podium/desk typically staffed by a security ambassador. The contrasting landmark is FastTrack branding, which is commonly presented to the right or center-right of the security approach.
What is the shortest step-by-step pedestrian route from Terminal 2 Arrivals to the Skylink entrance that avoids any lift-only chokepoint?
Taking escalators is the shortest route from Terminal 2 Arrivals to the Skylink entrance that avoids the lift-only chokepoint, but it only works if you are not using a luggage trolley. The lift bank becomes the mechanical bottleneck for trolley users because trolleys are not permitted on standard escalators.
Start from the Terminal 2 Arrivals Hall on Level 0 after you exit the customs/baggage reclaim flow and face into the public arrivals space. Locate the escalator bank positioned centrally or slightly left of the main greetings barrier. Ride the escalator up to Level 1 (Departures level), then turn left immediately at the top—before drifting into the check-in hall—and follow overhead signs for “The Station” and “Terminals 1 & 3” into the enclosed Skylink bridge over the roadway.
What is the exact location (landmark + level) of the Skylink lift bank reported as the only option from T2 arrivals to Skylink?
The Skylink lift bank is in the Terminal 2 Arrivals Hall on Level 0 (ground floor), adjacent to the main escalator bank near the exit flow from international baggage reclaim. This is the primary vertical node that funnels arriving passengers up to Level 1, where the Skylink bridge to the Station and other terminals begins.
From the public Arrivals space, use the fixed landmark of the escalators: the lifts are grouped beside them rather than deeper in the check-in footprint. If you’re coming out of baggage reclaim into Arrivals, the lift/escalator node is the obvious “upward” cluster passengers queue at when wide-body arrivals discharge trolley users into the hall.
What is the exact walking distance from Terminal 1 check-in hall to Terminal 2 departures via the internal Skylink walkway?
Walking distance is approximately 600 meters from the Terminal 1 check-in hall to Terminal 2 Departures using the internal Skylink walkway. That total is the sum of the Terminal 1 side link into the Station hub plus the long Station-to-Terminal 2 bridge segment.
| Segment | Start → End | Distance |
|---|---|---|
| A | Terminal 1 internal link (via Arrivals lift area) → Station central hub | 192 m |
| B | Station central hub → Terminal 2 entrance/Departures side | 407 m |
| Total | Terminal 1 check-in hall → Terminal 2 Departures | ~600 m |
What is the exact walking distance from Terminal 1 Arrivals exit to the Terminal 1 Short Stay car park pay/exit point used for quick pick-ups?
Walking distance is approximately 50–100 meters from the Terminal 1 Arrivals exit to the Terminal 1 Short Stay car park interface used for quick pick-ups. The Short Stay multi-storey sits directly opposite the Arrivals exit across the forecourt lanes, so the walk is essentially the forecourt crossing plus the car park entrance threshold.
The practical landmark is the moment you step out of Terminal 1 Arrivals onto the public forecourt: use the nearest pedestrian crossing over the immediate vehicle lanes, then enter the Short Stay multi-storey directly facing the terminal. For timing, that 50–100 m usually converts to about 1–3 minutes depending on crowding and luggage drag.
Where is the Free Drop-Off shuttle-bus stop located, and what is the exact walking distance from that stop to Terminal 3 Departures doors?
Walking distance is less than 50 meters from the Free Drop-Off shuttle set-down point to the Terminal 3 Departures doors. The Free Drop-Off location is JetParks 1 (Thorley Lane), and the shuttle drops Terminal 3 passengers at Bus Stop C.
From Bus Stop C, the Terminal 3 Departures entrance is effectively immediate: walk straight from the stop to the main Departures doors at the terminal frontage. The key landmark is the bus stop letter itself—if you’re not at “C,” you’re not at the closest Terminal 3 set-down point on the Free Drop-Off loop.
What is the exact driving route decision point (last roundabout / fork) where drivers must choose between paid drop-off and the Free Drop-Off area?
The irreversible decision point is the fork on the airport spur road immediately after exiting the M56 at Junction 5, where lanes split between “Terminals 1, 2, 3” and “JetParks / Free Drop Off.” Missing the JetParks divergence commits you into the terminal loop and its paid zones.
Stay alert for the overhead gantry lane guidance on the spur: lanes signed for Terminals feed forward into the forecourt/terminal approach, while the JetParks/Free Drop-Off routing peels away toward Thorley Lane. The hard landmark that you’ve gone too far is reaching the Hilton/Clayton Hotel roundabout area—once you’re there, you’ve passed the practical point of no-return for the free option without exiting the airport roads and re-approaching.
What is the exact order of terminal stops on the Free Drop-Off shuttle (which terminal is first, second, third) as shown on the airport-side wayfinding map?
The Free Drop-Off shuttle stop order is Terminal 3 first, Terminal 1 second, and Terminal 2 third, followed by The Station. This sequence matters because it makes the free option quickest for Terminal 3 and slowest for Terminal 2.
- Terminal 3 (Bus Stop C)
- Terminal 1 (Bus Stop E)
- Terminal 2 (Bus Stop H)
- The Station
From Terminal 2, what is the exact shortest pedestrian path to the pick-up spot people use near Radisson Blu/Skylink area, and what’s the walking distance?
Walking distance is approximately 530 meters from Terminal 2 to the Radisson Blu/Skylink meeting spot using the shortest internal pedestrian path. The route runs from Terminal 2 into the Level 1 Skylink bridge, through the Station hub, then out along the Station spur that leads directly to the Radisson Blu entrance.
| Step | Route anchor | Distance |
|---|---|---|
| 1 | Terminal 2 Arrivals (Level 0) → vertical up to Skylink (Level 1) | vertical transition |
| 2 | Skylink (Terminal 2 side) → The Station central hub | 407 m |
| 3 | Station hub → Radisson Blu entrance spur | 121 m |
| Total | Terminal 2 → Radisson Blu meet point | ~528–530 m |
After clearing Terminal 1 security, what is the exact connecting corridor/junction that routes passengers toward the Terminal 3 airside area?
The connecting route is the dedicated airside corridor near the Gate B pier entrance at the edge of Terminal 1’s International Departure Lounge boundary. That junction is where passengers in the Terminal 1 secure zone can follow “Terminal 3” (and gate-range) signage into the internal walkway linking the two terminals.
From the Terminal 1 security exit flow, orient toward the Gate B pier entrance and look for the corridor spur that breaks off the main departures lounge circulation near the International Departure Lounge (IDL) boundary line. This is not a landside transfer: it’s an internal secure connector intended for departing passengers, and it functions like a short cross-terminal link rather than a full Skylink traversal.
Where exactly does the Terminal 3 landside security queue overflow begin (the furthest “queue start” point) relative to fixed landmarks (doors, desks, escalators)?
The furthest Terminal 3 security queue overflow start point is outside the Terminal 3 automatic revolving entrance doors, where the tail can extend onto the curbside pavement in peak “Red Status” surges. That is the unmistakable landmark that the queue has exceeded the designed internal containment.
Inside the building, the overflow progression runs back past the check-in desks and the Special Assistance Desk, then into the central circulation aisle that parallels the check-in counters. If you enter through the revolving doors and immediately meet the back of a standing line, the overflow has already breached the internal hall and the “queue start” has effectively regressed to the entrance threshold.
